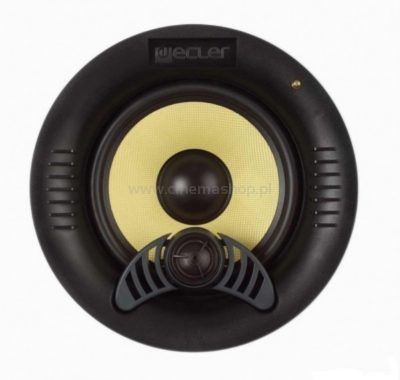

ECLER IC8PLUS 2-way loudspeaker integrates a careful selection of components (8″ woofer + 1″ tweeter) in a design that provides high quality sound and fast installation, using a minimum of tools.
For maximum flexibility and adaptability to multiple installation profiles, the IC8PLUS admits the optional 70/100V line transformer.

External diameter 310 mm
Frequency response (-6 dB) 50Hz – 22kHz
Internal diameter 264,5 mm
Nominal low impedance
RMS power 100 W
Sensitivity (dB@1m 1W) 86 dB
Weight 2 kg

Key Features
• High quality in-ceiling 2-way speaker, 100 WRMS
• 8″ Kevlar® woofer
• 1″ Silk dome (ACCW) tweeter, ± 15º tiltable
• NBR suspension
• Light construction in 4 mechanical bodies
• Fast installation system in 3 steps (frame-speaker-grill) using a minimum of
tools and integrating an automatic safety pin
• Aluminium front grill
• Optional 70/100 V line transformer

Applications
• Corporate and residential buildings
• Commercial premises
• Leisure centres
• Sound reinforcement in clubs, bars, etc.
• Health and sports centres
• Meeting and conference rooms
• 5.1 and 7.1 surround systems
• Auditoriums, museums
