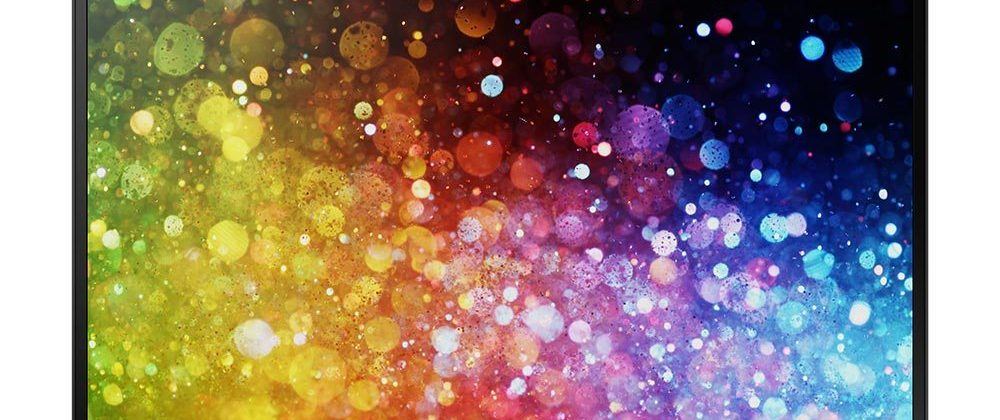

Monitor Samsung DC43J



KEY HIGHLIGHTS

  • Affordable digital signage that supports 16/7 operation and 300-nit brightness
  • Easy and simple content management with embedded MagicInfo Lite



Features



Amplify Business Messaging

The DCJ series combines FHD resolution, 300nit brightness, and 16/7 reliability to boost engagement and relay timely information with superior content presentation.

Load and Share with Ease

The embedded MagicInfo Lite Player allows users to conveniently load and play a wide range of content types. Simply plug in a USB device to the built-in port or access the internal memory to display the desired content on the screen.

Simplify Content Scheduling

Utilize the Local Schedule Manager to seamlessly play content from the internal memory and/or a USB drive. For added convenience, configure playback settings and create schedules directly through the display with a remote control.

Diversify Connectivity Preferences

With a versatile interface including USB, DVI, HDMI, RS-232C and RJ45, easily connect and use a wide array of devices with the display.

Specs



Panel

  • Diagonal Size43″
  • Type60Hz D-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.16333(H) x 0.49005(V)
  • Active Display Area(mm)940.89(H) x 529.25(V)
  • Brightness(Typ.)300 nit
  • Contrast Ratio3000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)8ms
  • Display Colors16.7 M
  • Color Gamut72%
  • Haze2%

Display

  • Dynamic C/RMEGA
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input
  • RGBDVI-I
  • VideoHDMI 1.4 (2), Component(CVBS Common)
  • HDCPHDCP 1.4
  • AudioStereo Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(Common)
  • USBUSB 2.0 x 1
Output
  • RGBN/A
  • VideoN/A
  • AudioStereo Mini Jack
  • Power OutN/A
  • External ControlRS232C(in) thru stereo jack, RJ45
  • External SensorIR
  • TunerYes(only for NA/KR)

Power

  • TypeInternal
  • Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]99
  • Typical[W/h](W/W)53, (US)38, (KR)62
  • BTU(Max)337
  • Sleep modeless than 0.5W
  • Off mode0

Mechanical Specification

Dimension (mm)
  • Set985.5 X 574.8 X 73.4
  • Package1099 X 672 X 156
Weight (kg)
  • Set7.8
  • Package11.5
  • VESA Mount (mm)200*200mm
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeN/A
  • Media Player Option TypeN/A
  • Bezel Width (mm)17.3(Top), 18.3(Bottom), 21.3(Side)

Operation

  • Recommended Usage Hours16/7
  • Operating Temperature0.0  ℃  ~   40.0   ℃
  • Humidity10.0  %  ~   80.0   %

Feature

  • Key FeaturesLight LFD with Built-in MagicInfo Lite
  • Special FeaturesH/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network
Internal Player
  • ProcessorMIPS 24K
  • On-Chip Cache MemoryL1 : 16KB/16KB L2 : 128KB
  • Clock Speed650MHz
  • Main Memory Interface512MB
  • GraphicsN/A
  • Storage (FDM)179MB
  • MultimediaN/A
  • IO PortsN/A
  • Operating SystemSamsung Proprietary OS(VDLinux)

Certification

  • Safety– CB (Europe) : IEC60950-1/EN60950-1 – CCC (China) : GB4943.1-2011 – PSB (Singapore ) : PSB+IEC60950-1 – NOM (Mexico ) : NOM-001-SCFI-1993 – IRAM (Argentina ) : IRAM+IEC60950-1 – SASO (Saudi Arabia ) : SASO+IEC60950-1 – BIS(India) : IEC60950-1 / IS13252 – NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 – KC(Korea) : K 60950-1 – EAC(Russia) : EAC+IEC60950-1 – INMETRO(Brazil) : INMETRO+IEC60950-1 – BSMI(Taiwan) : BSMI+IEC60950-1 – RCM(Australia) : IEC60950-1/AS/NZS 60950-1 – CSA (Canada) : cUL – UL(USA) : cUL60950-1 – TUV (Germany) : CE – NEMKO (Norway) : CE
  • EMC„- FCC (USA) Part 15, Subpart B Class A – CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 – VCCI (Japan) : VCCI V-3 /2010.04 Class A – KCC/EK (Korea) : Tunerless : KN22 / KN24 – BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) – C-Tick (Australia) : AS/NZS CISPR22:2009 – CCC(China) :GB9254-2008, GB17625.1-2012 – GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003”

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for KR)
Optional
  • StandN/A
  • MountWMN4070SE
  • SpecialtyN/A

Media Player

Media Player
  • Media PlayerSBB (Not attatchable)
