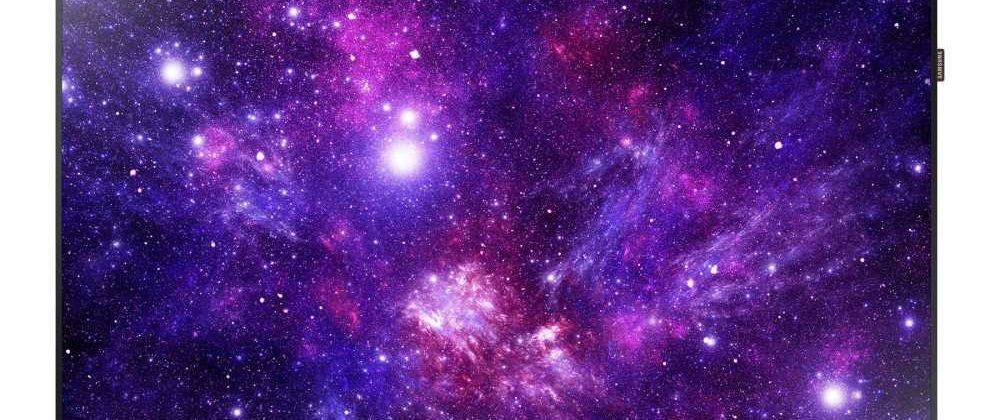

MONITOR SAMSUNG DC49H

A robust yet cost-effective display that can be trusted to satisfy a range of business needs





KEY HIGHLIGHTS

  • Affordable digital signage that supports 16/7 operation and 350-nit brightness
  • Streamlined content management with embedded MagicInfo Lite
  • Slim design and expanded connectivity options for space efficiency





Features

Easily elevate business branding and messaging with brilliant and durable signage

DCH Series displays deliver industry-leading picture quality, proven Samsung technology and a wide array of sizing options for adaptable and dependable business usage to meet various business needs. The displays offer reliable 16/7 usage to ensure that your business messages are efficiently conveyed. Plus, 350 nit brightness and crystal clear image quality enable business owners to captivate their customers





Content Auto Play in USB memory or internal memory

MagicInfo Lite Player uses a sophisticated technology to play a huge range of content including video, images, photos on demand, or from a schedule. Customers can easily play files from, or transfer between, the large internal memory or external USB devices plugged into the in-built port. The MagicInfoSlide folder on the USB memory has content that is listed in alphabetical order which is easier and convenient to use as it does not require separate schedules.





Control Displays in multiple locations easily and instantly

MagicInfo Lite solution that comes with the embedded media player extends the remote content management over network through MagicInfo server. Media contents of the USB memory stick plugged in to the back of the DCH Series displays can be scheduled to play from a remote PC. The connection to MagicInfo server allows remote monitoring and management of the DCH Series displays. Device information, content playback schedules, network data monitoring, time scheduling, alarms and various controls are all available remotely.





Easily Manage digital signage with a versatile connectivity

Connect the display to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use the most but support for a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C and RJ45 for extensive connectivity. In addition, DCH series has a space to attach SBB player, which can transform the signage into all-inclusive digital signage solutions.







Specs





Panel

  • Diagonal Size49″
  • Type60Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.186 x 0.559
  • Active Display Area(mm)1073.78 x 604.00
  • Brightness(Typ.)350 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)8ms
  • Display Colors16.7 M
  • Color Gamut72%
  • Haze2%

Display

  • Dynamic C/RMEGA
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input
  • RGBDVI-I
  • VideoHDMI 1.4 (2), Component(CVBS Common)
  • HDCPHDCP 1.4
  • AudioStereo Mini Jack, RGB/DVI/HDMI/Component Audio(Common)
  • USBUSB 2.0 x 1
Output
  • RGBN/A
  • VideoN/A
  • AudioStereo Mini Jack
  • Power OutN/A
  • External ControlRS232C(in) thru stereo jack, RJ45
  • External SensorN/A
  • TunerYes(only for NA/KR)

Power

  • TypeInternal
  • Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]99
  • Typical[W/h](W/W)52, (US)45, (KR)66
  • BTU(Max)337.59
  • Sleep mode0.5
  • Off mode0

Mechanical Specification

Dimension (mm)
  • Set1096.9 X 629.1 X 30.5
  • Package1214 x 721 x 157
Weight (kg)
  • Set13.1kg
  • Package17.4 kg
  • VESA Mount (mm)400*400mm
  • Mounting HoleN/A
  • Protection GlassN/A
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeN/A
  • Bezel Width (mm)9.0 (Top/Side), 11.0 (Bottom)

Operation

  • Recommended Usage Hours16/7
  • Operating Temperature0.0  ℃  ~   40.0   ℃
  • Humidity10.0  %  ~   80.0   %

Feature

  • Key FeaturesSlim & Light LFD with Built-in MagicInfo Lite
  • Special FeaturesH/W : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network
Internal Player
  • ProcessorMIPS 24K
  • On-Chip Cache MemoryL1 : 16KB/16KB L2 : 128KB
  • Clock Speed650MHz
  • Main Memory Interface512MB
  • GraphicsN/A
  • Storage (FDM)179MB
  • MultimediaN/A
  • IO PortsN/A
  • Operating SystemSamsung Proprietary OS(VDLinux)

Certification

  • SafetyCB (Europe) : IEC60950-1/EN60950-1 , CCC (China) : GB4943.1-2011 , PSB (Singapore ) : PSB+IEC60950-1 , IRAM (Argentina ) : IRAM+IEC60950-1 , SASO (Saudi Arabia ) : SASO+IEC60950-1 , BIS(India) : IEC60950-1 / IS13252 , NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998 , KC(Korea) : K 60950-1 , EAC(Russia) : EAC+IEC60950-1 , INMETRO(Brazil) : INMETRO+IEC60950-1 , BSMI(Taiwan) : BSMI+IEC60950-1 , RCM(Australia) : IEC60950-1/AS/NZS 60950-1 , CSA (Canada) : cUL , UL(USA) : cUL6095
  • EMCFCC (USA) Part 15, Subpart B Class A , CE (Europe) : EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:2003 , VCCI (Japan) : VCCI V-3 /2010.04 Class A , KCC/EK (Korea) : Tuner : KN13 / KN20,Tunerless : KN22 / KN24 , BSMI (Taiwan) : CNS13438 (ITE EMI) Class A /CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) , C-Tick (Australia) : AS/NZS CISPR22:2009 , CCC(China) :GB9254-2008,GB17625.1-2012 , GOST(Russia/CIS) : GOST R 51317 Series,GOST 22505-97, EN55022:2006+A1:2007,EN55024:1998+A1:2001+A2:

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter
Optional
  • StandSTN-L4655E
  • MountWMN4270SD
  • SpecialtyCML450H

Media Player

Media Player
  • Media PlayerSBB
