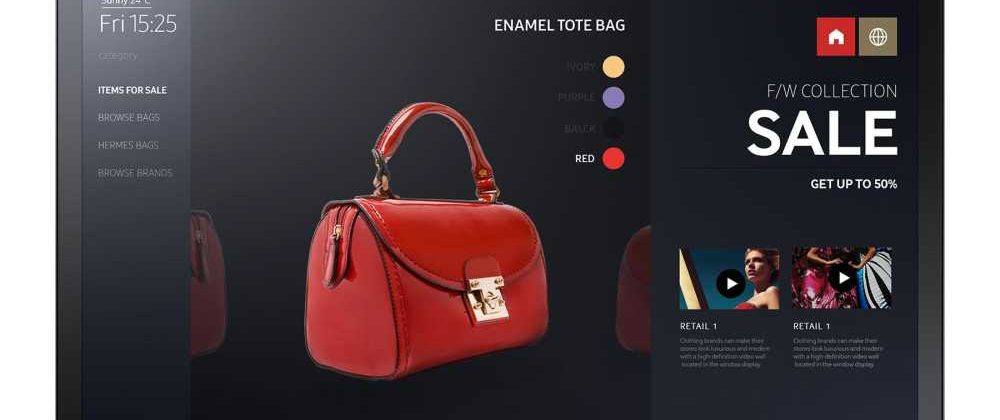

Monitor Samsung PM32F-BC



  • Capacitive touch technology that enables up to 10 different touch points simultaneously
  • All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen™
  • IP5x certification that reflects it can withstand demanding usage environments

Achieve compelling customer engagement through all-in-one touchscreen displays

Samsung’s PMF-BC displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. The displays allow consumers to seamlessly navigate a range of relevant content without interference from surrounding light or environmental conditions. The integrated, powerful Tizen operating system grants PMF-BC users exciting capabilities to deliver rich, engaging content with minimal operational burden required.

Powerful, Convenient Management through an All-in-One Composition

Samsung’s PMF-BC displays condense several vital signage components – including a powerful operating system, embedded media player and capacitive touch technology – into an all-in-one solution. Backed by the versatile Tizen OS, the PMF-BC displays deliver dynamic, touch-enabled content without requiring external PCs or devices. An intuitive interface further drives quick and convenient navigation across essential applications and content.

Comfortable, Multi-Point Capacitive Touch Communication

Through capacitive touch technology and a user-friendly design, Samsung’s PMF-BC displays foster a comfortable, easy-to-navigate digital writing experience. The interactive displays can accommodate up to 10 unique touch points while maintaining the smooth, familiar feel of analog board or pen-and-paper writing, and without interference from dust, sunlight or other natural variables.

Brilliant, Glare-Free Visual Quality

Featuring elevated contrast ratios and 400nit brightness, the PMF-BC displays showcase highly visible content even in environments subject to variable lighting conditions. A non-glare, glass touch front panel further reduces the impact of natural and ambient light interference and guarantees consistent readability, while a complementary anti-haze coating drives smooth, uninterrupted on-screen navigation.

Reliable, Dust-Resistant Design for Continuous Content Delivery

Designed for continuous operation, Samsung’s PMF-BC displays build trust for users looking to deliver unwavering messaging without ongoing maintenance. Each PMF-BC display has strong resistance to dust and dirt making the displays a welcome addition to environments frequently subject to these elements.

Convenient Display Control through a Centralized Receiver

The PMF-BC displays drive user convenience through a centralized infrared receiver (IR). Contrary to standard displays which place their IR in a hard-to-access – and thus hard-to-control – location, the PMF-BC displays receive IR signals across their individual panels. As a result, users can activate IR functionalities from various locations and further augment quick and uninterrupted management.

Panel

  • Diagonal Size32″
  • Type60Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.360(H) x 0.360(V)
  • Active Display Area(mm)698.4(H) x 392.85(V)
  • Brightness(Typ.)300 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)8ms (TBD)
  • Display Colors10bit Dithering – 1.07Billion
  • Color Gamut72%
  • Haze2% (Panel), 15% (Glass)

Display

  • Dynamic C/RMega
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input
  • RGBDVI-I(D-Sub Common), Display Port 1.2 (1)
  • VideoHDMI 2.0 (2)
  • HDCPHDCP 2.2
  • AudioStereo mini Jack, RGB/DVI/HDMI
  • USBUSB 2.0 x 2 (1 Used for Touch)
Output
  • RGBDP1.2(Loop-out)
  • VideoN/A
  • AudioStereo mini Jack
  • UsbUSB Type-B x 2 (Touch Sensor Data, PC 1 / SoC 1)
  • Power OutN/A
  • External ControlRS232C(In/Out) thru Stereo Jack, RJ45
  • External SensorN/A
  • TunerYes (only for NA)

Power

  • TypeInternal
  • Power SupplyAC 100 ~ 240 V, 50/60 Hz
Power Consumption
  • Max[W/h]90
  • Typical[W/h]117
  • BTU(Max)525
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set745.2 X 439.6 X 62.1
  • Package845 X 543 X 148
Weight (kg)
  • Set9.9
  • Package11.6
  • VESA Mount (mm)200×200
  • Mounting HoleN/A
  • Protection Glass3.2T Semi-Tempered Touch Glass
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeN/A
  • Bezel Width (mm)21.9 / 21.9 / 21.9

Operation

  • Recommended Usage Hours16/7
  • Operating Temperature0.0  ℃  ~   40.0   ℃
  • Humidity10.0  %  ~   80.0   %

Feature

  • Key FeaturesSlim & Light Signage with Built-in MagicInfo S4, SSSP 4.0, Cap-Touch
  • Special FeaturesH/W : Non Glare Touch Panel, Temperature Sensor, Video Wall(15×15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP(Only for NA), Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Player
  • ProcessorCortex-A12 1.3GHz Quad Core CPU
  • On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
  • Clock Speed1.3GHz CPU Quad
  • Main Memory Interface2.5GB 3 channel 96bit DDR3-933 (1866MHz)
  • Graphics2D & 3D Graphics Engine – Up to 3840x2160p. 32bpp – Supports OpenGL ES
  • Storage (FDM)8GB (3.75GB Occupied by O/S, 4.25GB Available, )
  • MultimediaVideo Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio DSP (Decoder) – AC3 (DD), MPEG, DTS and etc.
  • IO PortsUSB 2.0
  • Operating SystemTizen 2.4 (VDLinux)

Certification

  • SafetyCB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE
  • EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) Gender, Cover Jack, USB Cable
Optional
  • StandSTN-L3240E
  • MountWMN4070SD
  • SpecialtyCML400XJ (TBD)

Media Player

Media Player
  • Media PlayerSBB
