Apart APDI

Half rack Apart Dante™ input convertor

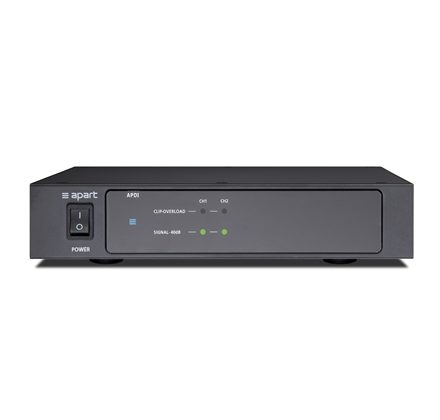

The Apart Audio APDI analogue audio to Dante™ audio convertor enables you to connect any analogue audio device to a Dante™ network. Simply connect your balanced or unbalanced, stereo or dual mono line level signals to the RCA or euroblock input of the APDI and one RJ45 cable will connect you to the Dante™ world of audio networking. APDI is Dante Domain Manager compatible. Input channels 1 & 2 have a rotary gain control and clip LED indicator on the rear that allows you to easily configure the input signal. On the front of the unit there is also a clip overload and signal -40db LED indicator displaying the current audio signal status. Built in a slim 1U high half rack unit wide chassis without front panel controls the APDI will connect your system to the Dante™ audio network in no time.



19″ (483 mm wide) rack mountingyes, with extended rack earheight- rack units (1U=44 mm)1 U
depth (build in)194 mmpower supply100 – 240 VAC
power consumption (max)30 wattszone outputs2 mono or 1 stereo
line input balanced2line input unbalanced2
frequency response (in Hz)20 – 20 ksignal to noise level SNR (dB)>92
total harmonic distortion THD (%)<0.1crosstalk (dB)>70
Dante Device Manager compatibleyesNet weight product (kg)1.45
