Apart APDO

Half rack Apart Dante™ output convertor

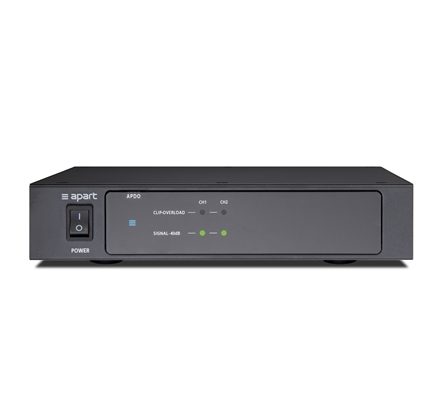

The Apart Audio APDO Dante™ audio to analogue audio convertor enables you to send your audio to any analogue audio device over any Dante™ audio network. Simply connect your RJ45 Dante™ connection to the device and use the balanced or unbalanced, stereo or two mono line outputs on euroblock or RCA to send your audio to any analogue input on a matrix, active loudspeaker, mixing amplifier, pre or power amplifier. APDO is Dante Domain Manager compatible Channel 1 & 2 have a front and rear clip-overload LED indicator and signal -40dB on the front displaying the current audio signal status. Built in a slim 1U high half rack unit wide chassis without front panel controls the APDO will connect the Dante™ audio network to your system in no time.

19″ (483 mm wide) rack mounting yes, with extended rack ear height- rack units (1U=44 mm) 1 U
depth (build in) 194 mm power supply 100 – 240 VAC
power consumption (max) 30 watts zone outputs 2
line output balanced 2 line output unbalanced 2
frequency response (in Hz) 20 – 20 k signal to noise level SNR (dB) >92
total harmonic distortion THD (%) <0.1 crosstalk (dB) >70
Dante Device Manager compatible yes Net weight product (kg) 1.45
