Apart D-DIWAC

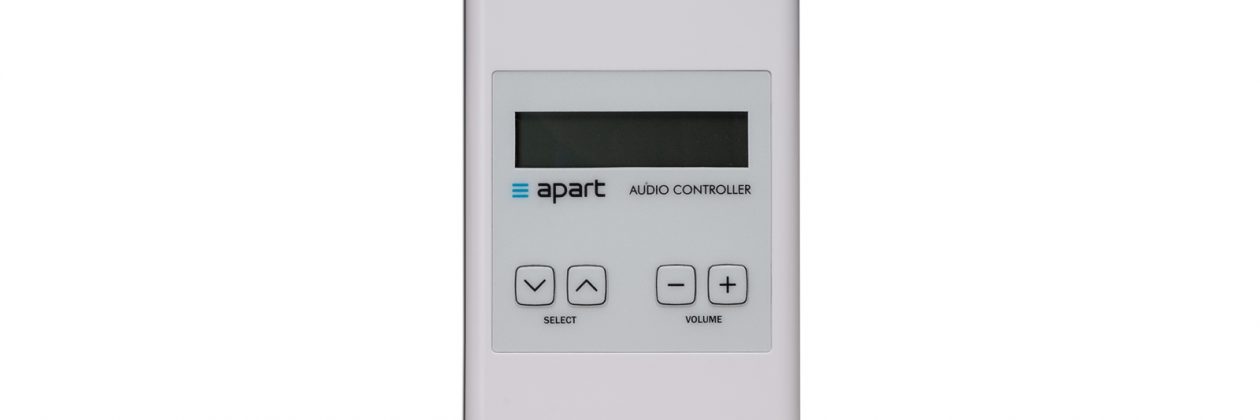

Digital wall control Decora Style

The D-DIWAC wall mount controller is ideal to control the AUDIOCONTROL12.8 and AUDIOSYSTEM8.8 in every single room. The DIWAC is configured as an audio controller with ‚source select’ and ‚volume adjustment’ buttons. The LCD-display has 2 line – 12 character and has a timed (adjustable) white blacklight.

supported main unit AC12.8 – AUDIOSYSTEM8.8 programmable functions yes
addressing hardwired connector type euroblock 2-pole
max. cable 2.5 mm² max. cable length 580 m
inputs no width 70 mm
height 115 mm depth 20 mm
weight 0.1 kg Net weight product 0.07 kg
