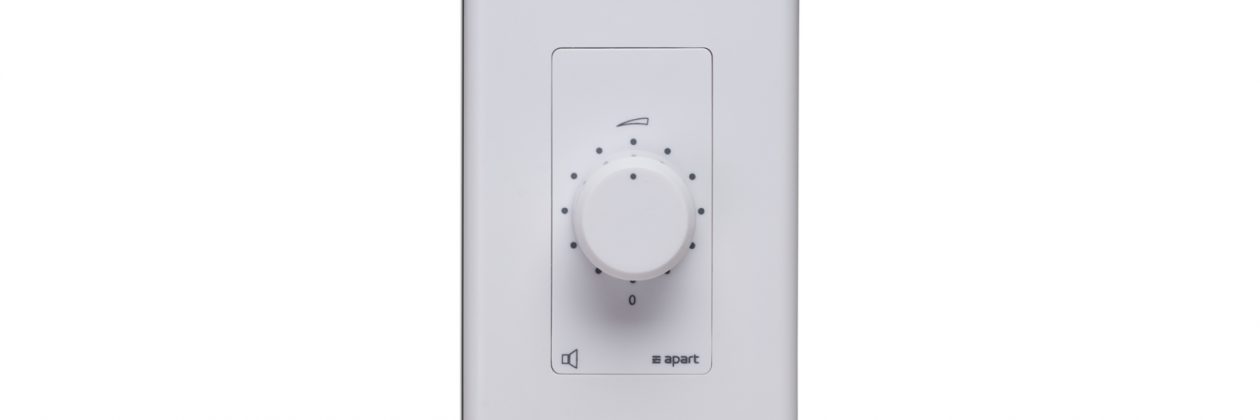

Apart D-VOL30

70 volt, 30 watts volume controls Decora style

The Apart D-VOL30 is a 70 volt volume control. It can handle up to 30 watts of power and is very durable thanks to the step-by-step attenuation in 11 steps + zero position. The D-VOL30 is designed to handle 24V priority signals. This means that you can always get an announcement out, even to zones where the local volume control is in the ‘OFF’ position! If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the microphone. The 24V signal will close a relay on the D-VOL30 volume control, and the signal will pass, even when the volume control is in the ‘OFF’ position. This can be very useful for emergency or evacuation messages. The D-VOL30 is built on a universal chassis that easily can be integrated with any Decora box offering a flush mount and neat finish.

stereo/monomonoapplicable low impedanceno
applicable 70Vyesmax. power30 watts
steps0 + 1124 volt priority relaisyes
mountingscrewconnector typeeuroblock 6-pole
max. cable2.5 mm²width70 mm
height115 mmdepth47 mm
weight0.37 kgNet weight product0.27 kg
