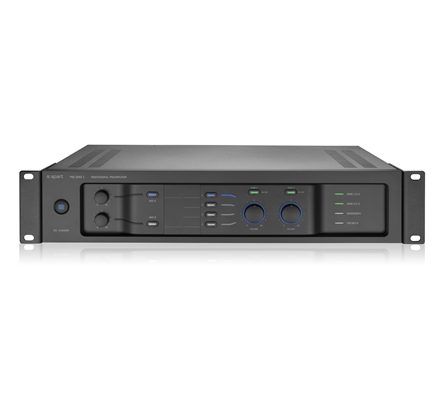

Apart PREZONE1


Stereo pre-amplifier/mixer with 2 stereo volume zones

The Apart PREZONE1, a multi-functional stereo preamplifier that allows you to independently control the volume in 2 stereo zones. It gives you the possibility to mix the 2 microphone levels easily with one of the 4 music sources. The innovative and extremely intuitive design of the front panel will instantly indicate how to operate the progressive PREZONE1. The logical rear panel will give every installer an instant understanding on how to install the unit. It’s easy to distinguish the PREZONE1 from its competitors. Its higher signal to noise ratio, ease-of-use, logical design and versatile installer features makes it suitable for almost every professional audio application.

19″ (483 mm wide) rack mountingyesheight- rack units (1U=44 mm)2 U
depth (build in)290 mmdepth (incl front)305 mm
power supply100 – 240 VACpower consumption (max)30 watts
zone outputs2 stereoSPDIF outputno
signal to noise level SNR (dB)>97total harmonic distortion THD (%)<0.2
crosstalk (dB)>70music level controlyes
MIC level controlyesVCA level controlno
source selection per zonenoMIC inputs balanced2
inputs with Phantom power2Phantom power voltage48 volts
noise gate on MICnoselectable input dynamicsno
selectable output dynamicsnoline input unbalanced4
line input SPDIFnotone controlyes
RS232 (serial communication port)nopriority input contactyes
VOX muteyesmaximum qty paging Mics0
emergency inputyespriority levels3
frequency response (in Hz)20 – 25 kapplicable in 100Vyes
applicable low impedanceyesNet weight product (kg)3.65
