Apart PREZONE2

Stereo pre-amplifier with 2 stereo source & volume zones

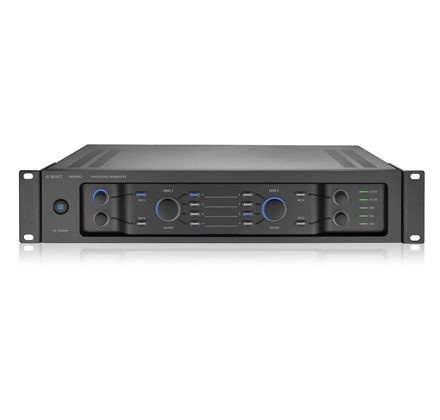

The Apart PREZONE2, a multi-functional stereo preamplifier that allows you to independently control the music source selection and volume in 2 stereo zones. It gives you the possibility to mix the 2 microphone levels easily with one of the 4 music sources. The innovative and extremely intuitive design of the front panel will instantly indicate how to operate the progressive PREZONE2. The logical rear panel will give every installer an instant understanding on how to install the unit. It’s easy to distinguish the PREZONE2 from its competitors. Its higher signal to noise ratio, ease-of-use, logical design and versatile installer features makes it suitable for almost every professional audio application.

19″ (483 mm wide) rack mounting yes height- rack units (1U=44 mm) 2 U U
power supply 100 – 240 VAC zone outputs 2 stereo
SPDIF output no music level control yes
MIC level control yes VCA level control no
source selection per zone yes MIC inputs balanced 2
inputs with Phantom power 2 Phantom power voltage 48 volts
noise gate on MIC no selectable input dynamics no
selectable output dynamics no line input balanced 1
line input unbalanced 4 line input SPDIF no
tone control yes RS232 (serial communication port) yes
wall panel controls yes priority input contact yes
VOX mute yes chime yes
emergency input yes priority output contact yes
priority levels 4 frequency response (in Hz) 20 – 25 k
applicable in 100V yes applicable low impedance yes
Net weight product (kg) 4
