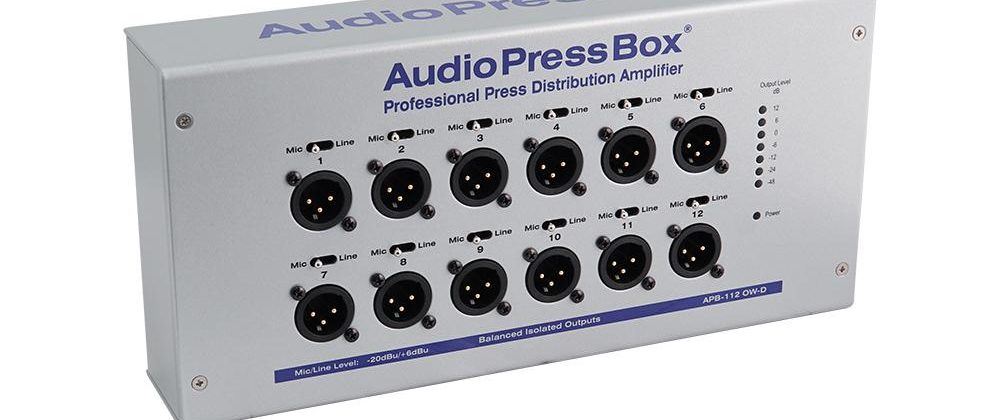

AudioPressBoxAPB-112 OW-D

Active, On Wall, AudioPressBox unit, 1 channel DANTE input, 12 LINE/Mic outputs

The DANTE-enabled on wall unit features 1 channel DANTE input with high quality digital to analog converter.

Powered via PoE from DANTE-network.

The unit has 12 balanced, individually transformer isolated Line/MIC outputs.

The unit is powered only via PoE from DANTE network.

This is a PoE level 3 device

CAUTION– If using a PoE injector, it must be IEEE 802.3af compliant. Use of a non-compliant PoE injector can terminally damage the device and may void the warranty.

Audio Press Box APB-112 OW-D
Type 1 In 12 Out
Groups 1
Input section
Inputs 1
Input connectors RJ45 – Dante
Output section
Outputs 12 Line/MIC level
Output connectors Balanced, XLR
Nominal Output Level +6dBu (front outputs)
Maximum Output Level +20dBu (no load)
+14dBu (600Ohm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Individually transformer isolated outputs Yes (each output)
SNR >90 dB
Frequency Response 20Hz to 20kHz/-3dB
Indicators Output level, Power
Power Supply PoE, Class3
Dimensions (WxHxD) 280x55x137mm
Weight 2,5 kg
