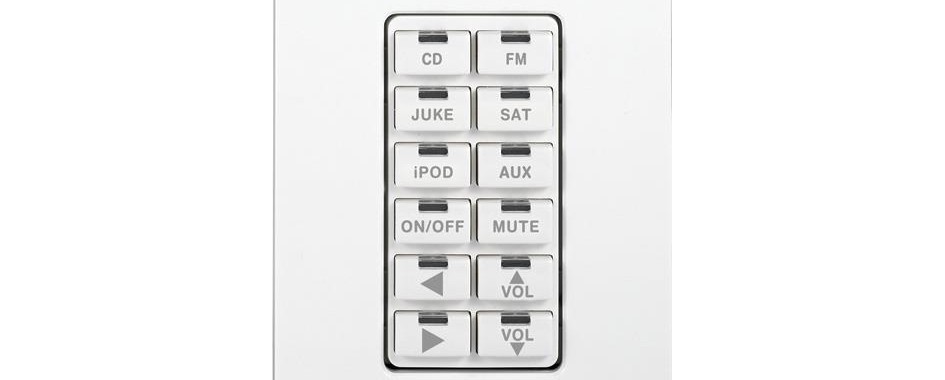

A simple AV control keypad offering contemporary styling. Includes pre-labeled button caps for source selection and control.

The Decorator Series C2N-DBF12 Function Keypad provides a cost-effective solution for controlling a Crestron® Multiroom AV distribution system. It is identical to the C2N-DB12 12-Button Decorator Keypad except that it includes a set of 30 assorted button caps pre-labeled for AV source selection and basic control functions.

For enhanced control using direct numeric entry for channel and track selection, add the C2N-DBN12 Numeric Keypad.

Button Caps Includes 30 pre-labled button caps: ADAGIO, AM, AUX, CD, DSS, DSS 2, DVD, FM, FM 2, IPOD, IPOD 2, JUKE, JUKE 2, MUSIC, MUTE, ON-OFF, SAT, SAT 2, SERVER, SIRIUS, SIRIUS (duplicate), TUNER, TV, VCR, VOL ∨, VOL ∧, XM, XM 2, <, and >
Keypad Buttons (12) programmable pushbuttons
NET (1) 4-pin 3.5mm detachable terminal block;
Cresnet slave port, connects to Cresnet control network
Chassis Plastic
Faceplate Requires decorator style faceplate (not included)
Mounting Mounts in a 1-gang or larger electrical box or mud ring
Depth 1.53 in (39 mm)
Height 4.16 in (106 mm) without faceplate
Width 1.79 in (46 mm) without faceplate
Humidity 10% to 90% RH (non-condensing)
Temperature 32° to 113°F (0° to 45°C)
Feedback (1 per button) red LED, programmable, software-adjustable intensity
Cresnet Power Usage 3 Watts (0.125 Amps @ 24 Volts DC)
2.6 oz (75 g)
