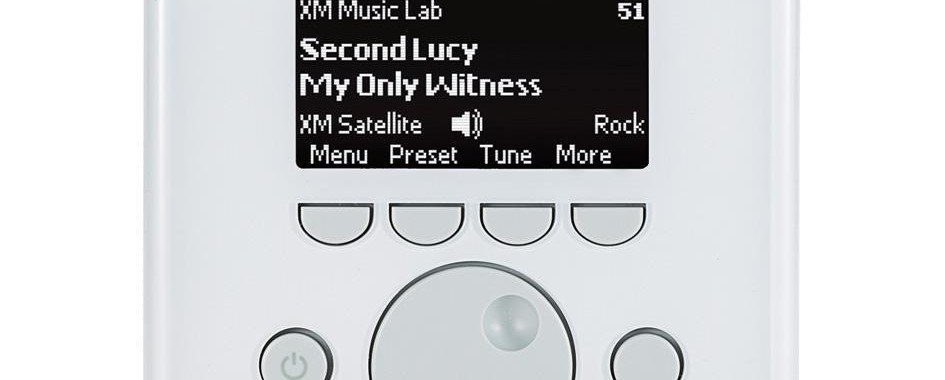

The APAD wall mount LCD controller provides an elegant yet cost-effective room control solution for Crestron’s Adagio® home entertainment systems, MPS multimedia presentation systems, or any control system application requiring a versatile, low-cost user interface.
The alluring white-on-black LCD display presents the user with a large amount of information in a small space. With graphical support for scrolling text, icons, and bargraphs, the APAD delivers an ideal user interface for controlling audio and a range of other possible functions throughout the home or office. Four „softkey” buttons beneath the display permit intuitive menu navigation and function selection.
A spin of the APAD’s nav wheel turns the music volume up or down, and enables scrolling through lists of available audio sources, radio channels, CD’s and song titles. The built-in „key click” feature audibly enhances the nav wheel’s natural tactile feel, and the „enter” button to the right quickly executes the desired selection set by the nav wheel. A dedicated „power” button is also included for fast, easy power on/off control.
Simplified connectivity using Crestron’s 4-wire Cresnet control bus makes installation a breeze. Fully bidirectional communications enables true-feedback for display of audio sources, radio stations, CD titles, artists, and tracks by name, as well as the current status of audio, lighting, or climate control settings.
Windows® SideShow™ Enabled
New support for Windows® SideShow™ gives the APAD access to all kinds of PC and Web-based content such as news feeds, sports scores, stock tickers, weather alerts, media guides, email messages, and appointment notifications all through a simple network connection to a Windows Vista™ computer.
The APAD affords easy plug-and-play functionality as part of a complete Adagio or MediaManager MPS system. Without requiring any programming, the APAD enables enhanced control of multi-room audio distribution and multimedia presentation. Of course the APAD is compatible with any Crestron 2-Series control system, allowing fully programmable functionality to support any custom application.
Versatile Mounting Options
Several mounting options are available for the APAD to facilitate a clean, attractive installation in any wall or similar flat surface.
- 4 „softkeys”, plus enter and power pushbuttons
- A stylish, affordable wall mount controller
- Adagio and MPS plug-and-play functionality
- Available in white or black
- Cresnet communications | 2-Series compatible
- Intuitive nav wheel with „key click” audible feedback
- Pleasing white-on-black LCD graphic display
|Built-in speaker (rear panel) for key click sound|
|NET||(1) 4-pin 3.5mm detachable terminal block;|
Cresnet slave port, connects to Cresnet control network
|Enter||(1) pushbutton, programmable, normally used to execute a selected command|
|Functions||(4) “softkey” pushbuttons, programmable, normally used to select menu functions|
|Nav Wheel||(1) Continuous turn rotary encoder; used to navigate menu, scroll through lists and adjust values; defaults to volume adjustment|
|Power||(1) pushbutton, programmable, normally used to execute a power command|
|Depth||1.94 in (4.93 cm)|
|Height||4.80 in (12.20 cm)|
|Width||4.90 in (12.44 cm)|
|Construction||Injection-molded plastic, flush mountable|
|Faceplate||Injection-molded plastic, white or black|
|Humidity||10% to 90% RH (non-condensing)|
|Temperature||32° to 104° F (0° to 40°C)|
|Monochrome, white on black (invertible); supports dynamic text and icon graphics, scrolling text, scrolling lists, Windows® SideShow™ enabled|
|Color||Monochrome, white on black, invertible|
|Display Type||Transmissive LCD dot matrix|
|Illumination||White LED backlit|
|Resolution||128 x 64 pixels|
|Size||2.72 in (6.9 cm) wide x 1.44 in (3.7 cm) high|
|Cresnet Power Usage||3 Watts (0.125 Amps @ 24 Volts DC)|
|9.2 oz (258 g)|
