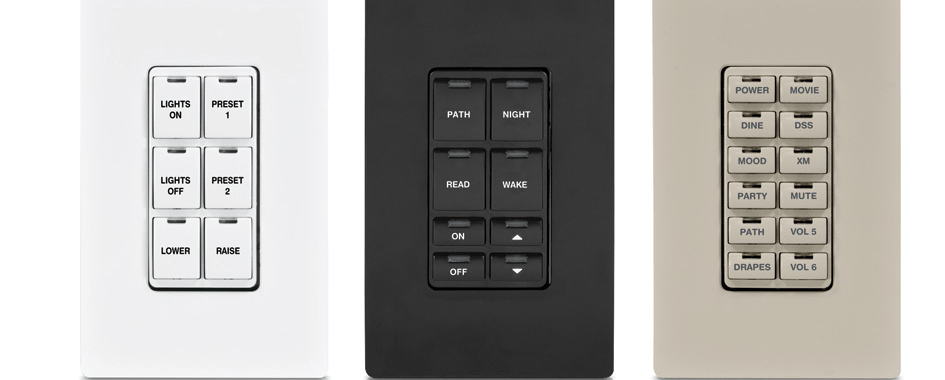

Crestron® C2N-DB Decorator Series keypads deliver simple, versatile pushbutton control for a broad range of residential and commercial applications. Clean, contemporary styling lends an attractive and unimposing appearance to any interior design, and affords convenient electrical box installation in perfect harmony with other wall mount devices. They are offered in smooth white, almond, and black finishes, each formulated to match perfectly with popular off-the-shelf faceplates.

Available in configurations of 6, 8, or 12 buttons, the Decorator keypads are designed for installation using standard electrical gang boxes and decorator-style faceplates. Multiple keypads can easily be ganged side-by-side along with other wall mount devices.

Custom engraving of the buttons is available to provide clear designation of each button’s function. Every button is accompanied by an LED indicator, providing true status feedback for the most reliable operation. And, every button and LED is fully programmable for virtually any custom functionality, making C2N-DB Decorator Keypads perfect for controlling room lighting and shades, audio and video equipment, or any other application that demands simple, immediate one-touch control.

Please note, the almond smooth (-A-S) and white smooth (-W-S) finishes currently offered are not the same as on older almond (A) and white (W) models. When ordering, please be sure to specify the model number exactly as shown in the price list or on the „Models & Accessories” tab. If you require buttons or keypads to match the older almond or white finishes, please contact your Crestron representative.

Button CapsIncludes blank button caps. Custom engraved button caps available separately[2].
Keypad Buttons(6, 8 or 12 depending upon model) programmable pushbuttons
NET(1) 4-pin 3.5mm detachable terminal block;
Cresnet slave port, connects to Cresnet control network
ChassisPlastic
FaceplateRequires decorator style faceplate (not included)
MountingMounts in a 1-gang or larger electrical box or mud ring
Depth1.53 in (39 mm)
Height4.16 in (106 mm) without faceplate
Width1.79 in (46 mm) without faceplate
Humidity10% to 90% RH (non-condensing)
Temperature32° to 113°F (0° to 45°C)
Feedback(1 per button) red LED, programmable, software-adjustable intensity
Cresnet Power Usage3 Watts (0.125 Amps @ 24 Volts DC)
2.6 oz (75 g)
