5″ two-way built-in marine speaker 8 ohms/50W

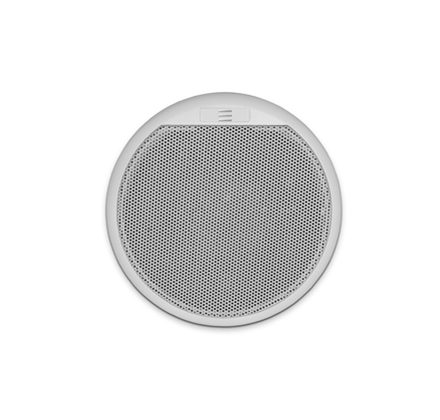

The CMAR5-W is a chlorine and salt water proof two-way 5.25″ loudspeaker. This marine speaker has been designed especially to offer superb sound and efficiency even in the most difficult, humid and hot conditions.

We have combined the best quality components with rigorous engineering specifications which results in a speaker that offers both durability and a great sound.

The fully plastic housing and stainless steel grille of the CMAR5-W loudspeaker are an absolute guarantee against rust and allow use in temperatures up to 95°C. Especially for use in yachts, cruise ships or sauna.

The CMAR Marine Series is available in 5.25″ (CMAR5-W), 6.5″ (CMAR6-W) and 8″ (CMAR8-W), so that there is always a speaker that exactly fits your needs!




outside diameter 152 mm depth 55 mm
cutout 113 mm installation grip range 1 – up mm
loudspeaker system 2-way woofer size 5.25 inch
woofer cone material polypropylene tweeter size 1 – up inch
mounting system 4 screws impedance 8 ohms
low impedance dynamic power 50 watts low impedance RMS power 25 watts
SPL 1W/1m 88 dB max SPL 1m 100 dB
frequency response 85 – 20K Hz main construction material ABS plastic
grille main material stainless steel IP rating 65
applicable low impedance yes applicable in 100V no
Vertical dispersion angle 1000 Hz 180° closest RAL colour (subject to deviations) RAL9003
Net weight product 0.60 kg
