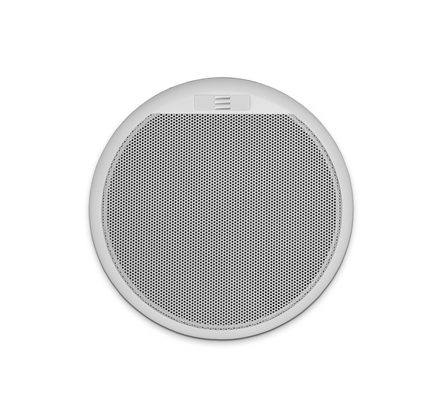

CMAR6T-W

6″ two-way built-in marine speaker 8 ohms/60W; 100V/20W

The CMAR6T marine speaker will bring high quality sound, even in the most difficult humid places. In these humid environments the selection of speaker components is limited to just a few, mostly not the best in audiophile performance. However we achieved to solve the material challenge and are able to bring you a marine speaker that offers a superb sound.

The CMART Marine Series has 3 different models in 5” (CMAR5T-W), 6” (CMAR6T-W) and 8” (CMAR8T-W). These loudspeakers are especially developed to be installed in humid or hot (up to 95° C) environments like swimming pools, yachts, bathrooms, saunas …

This new Apart waterproof marine speaker is already equipped with a 20 watts transformer (T20iP) what makes this waterproof speaker suited for low impedance as well as 100 volt systems.

outside diameter 190 mm depth 61 mm
cutout 151 mm installation grip range 1 – up mm
loudspeaker system 2-way woofer size 6.5 inch
woofer cone material polypropylene tweeter size 1 inch inch
mounting system 4 screws 100V transformer power taps 20 – 10 – 5 – 2.5 watts
impedance 8 ohms low impedance dynamic power 60 watts
low impedance RMS power 30 watts SPL 1W/1m 89 dB
max SPL 1m 104 dB frequency response 78 – 20K Hz
main construction material ABS plastic grille main material stainless steel
IP rating 65 applicable low impedance yes
applicable in 100V yes Vertical dispersion angle 1000 Hz 180°
closest RAL colour (subject to deviations) RAL9003 Net weight product 1.47 kg
