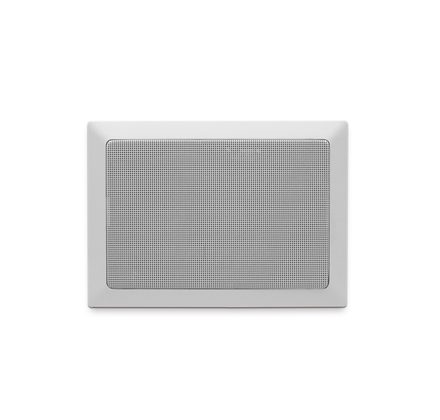

CMR20T

5.25″ two-way loudspeaker

CMR20T is a very compact and performant two-way rectangular 100 volt built-in speaker, provided with a 5.25” polypropylene woofer and 1” tweeter. The two-way aspect makes the loudspeaker very suitable for the reproduction of both background music and microphone calls.

Its 20 watts 100 volt transformer (with several power tappings) makes the CMR20T the ideal solution for rooms with high ceilings and/or rooms which need a higher power level. The different power tappings can be selected by the switch that is hidden behind the loudspeaker grille.

The loudspeaker is easy to install, due to its simple, quick mounting system (4 screws which are hidden behind the loudspeaker grille), which gives the loudspeaker a modern and striking design.
The CMR20T loudspeakers can be painted in any colour.







height 170 mm width 237 mm
depth 73 mm cutout 146 x 213 mm
installation grip range 3 – 17 mm loudspeaker system 2-way
woofer size 5.25 inch woofer cone material polypropylene
tweeter size 1 inch mounting system 4 screws
100V transformer power taps 20 – 10 – 5 – 2.5 watts impedance 16 ohms
low impedance dynamic power 60 watts low impedance RMS power 40 watts
SPL 1W/1m 85 dB max SPL 1m 100 dB
frequency response 60 – 20K Hz main construction material ABS plastic
grille main material aluminium IP rating 54
applicable low impedance yes applicable in 100V yes
Horizontal dispersion angle 1000 Hz 180° Vertical dispersion angle 1000 Hz 180°
closest RAL colour (subject to deviations) RAL9010 Net weight product 1.30 kg
