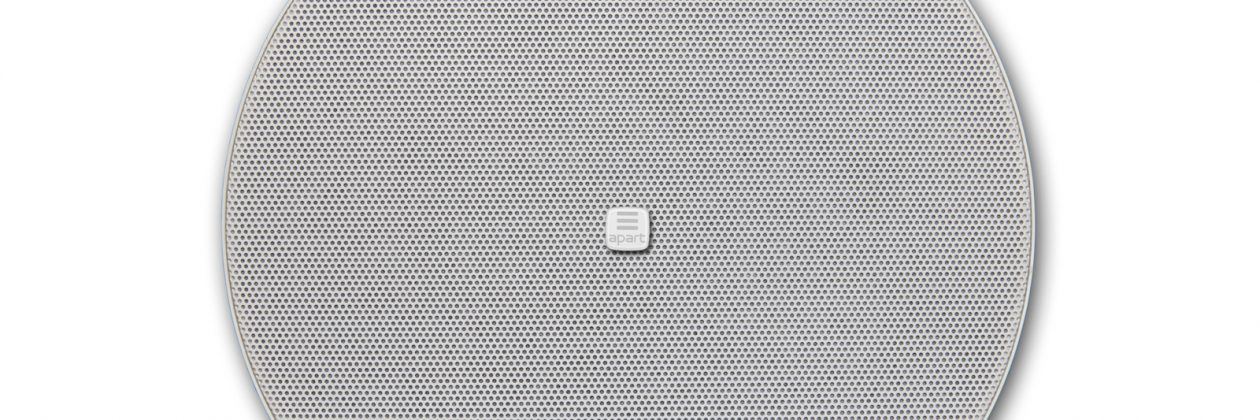

CM20DT

6.5″ two-way, thin edge ceiling loudspeaker, white

The CM20DT 6.5” two-way built-in loudspeaker can be used in 16 ohms or 70/100 volt modes. The high-quality 70/100 volt transformer is equipped with an easy tapping sticker with clear colour indication. The transformer colours are aligned with the cables connecting the Apart Quick Fit connector, a handy installer connector via push terminal. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. The paintable thin edge grille makes CM20DT the ultimate loudspeaker for design interior integration.

outside diameter 210 mm depth 80 mm
cutout 186 mm installation grip range 2 – 25 mm
loudspeaker system 2-way woofer size 6.5 inch
woofer cone material polypropylene tweeter size 1 inch
mounting system 3 screws 100V transformer power taps 20 – 10 – 5 watts
70V transformer power taps 20 – 10 – 5 – 2.5 watts impedance 16 ohms
low impedance dynamic power 60 watts low impedance RMS power 30 watts
SPL 1W/1m 86 dB max SPL 1m 104 dB
frequency response 60 – 20K Hz main construction material ABS plastic
grille main material steel IP rating 50
applicable low impedance yes applicable in 100V yes
Vertical dispersion angle 1000 Hz 180° closest RAL colour (subject to deviations) RAL9010
