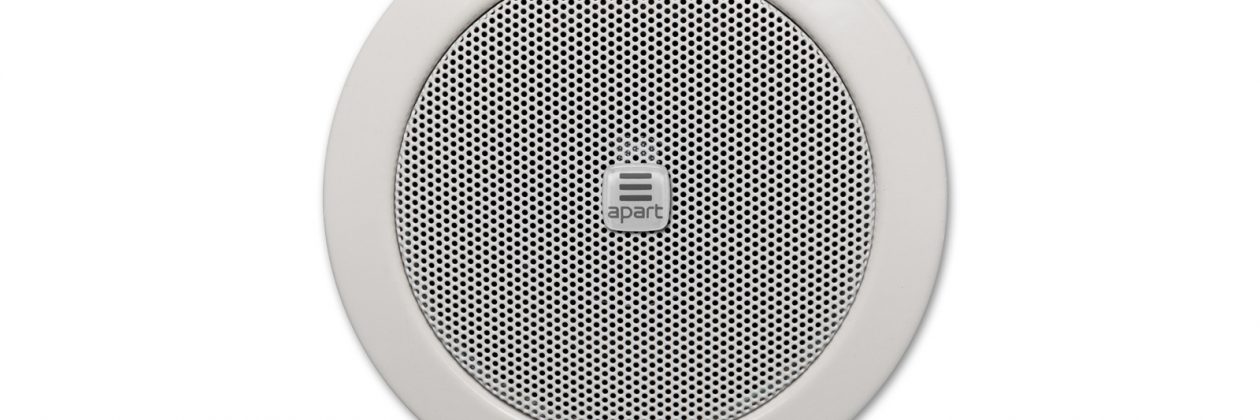

CM3T

3″ dual cone loudspeaker, white

     CM3T
     CM3T-BL

The CM3T is a stylish small built-in 70 / 100 Volt loudspeaker. Thanks to its halogen-spot size, it can be integrated into any interior style. It is ideal for speech and backgroundmusic in quiet areas, toilets, cloakrooms,….

The speaker has a full metal frame and a coated dual paper cone for the lowest distortion and increased resistance against moisture.

The CM3T is easy to install thanks to its simple, quick mounting system (2 spring clamps).

The versatile CM3T ceiling mount speaker now comes with the addition of the 70 / 100 volt connection, an elegant and stylish Apart removable logo and a redesigned tapping sticker for easy install.

The CM3T loudspeakers can be painted in any colour.

outside diameter105 mmdepth74 mm
cutout85 mminstallation grip range1 – 15 mm
loudspeaker systemdual conewoofer size3 inch
woofer cone materialcoated papermounting system2 springs
100V transformer power taps6 – 3 – 1.5 watts70V transformer power taps6 – 3 – 1.5 – 0.75 watts
impedance16 ohmslow impedance dynamic power20 watts
low impedance RMS power10 wattsSPL 1W/1m87 dB
max SPL 1m99 dBfrequency response120 – 18K Hz
main construction materialsteelgrille main materialaluminium
IP rating50applicable low impedanceyes
applicable in 100VyesVertical dispersion angle 1000 Hz180°
closest RAL colour (subject to deviations)RAL9010 (W) / RAL9011 (BL)Net weight product0.35 kg
