CM60DTD

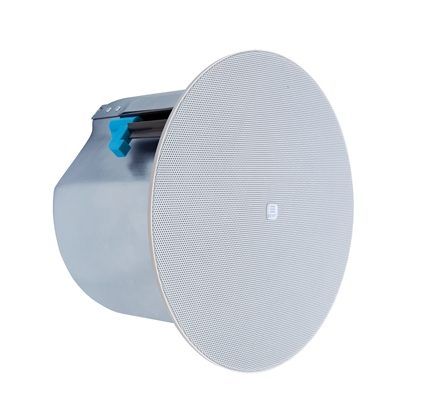

6.5″ two-way, thin edge ceiling loudspeaker, with back can

The Apart CM60DTD 6.5” two-way versatile built-in loudspeaker is suitable for the distribution of speech and music at a higher volume level. It provides a powerful high-end, dynamic, warm sound due to the tuned bass reflex port and controlled performance. The loudspeaker can be installed by two Apart loudspeaker clamps only, which speeds-up installation and reduces labour time. The 70/100 volt power tapping can be selected on the front and also offers 16 ohms connectivity. The CM60DTD comes with thin edge grille and integrated neodymium grille fixing magnets which allows an inconspicuous integration matching the surroundings of your venue.

outside diameter 258 mm depth 157 mm
cutout 232 mm installation grip range 3 – 65 mm
loudspeaker system 2-way woofer size 6.5 inch
woofer cone material coated paper tweeter size 1 inch
mounting system 2 screws 100V transformer power taps 60 – 30 – 15 – 7.5 watts
70V transformer power taps 60 – 30 – 15 – 7.5 – 3.75 watts impedance 16 ohms
low impedance dynamic power 120 watts low impedance RMS power 60 watts
SPL 1W/1m 91 dB max SPL 1m 110 dB
frequency response 65 – 20K Hz main construction material ABS plastic
grille main material steel IP rating indoor use only
applicable low impedance yes applicable in 100V yes
Horizontal dispersion angle 1000 Hz 180° Vertical dispersion angle 1000 Hz 180°
closest RAL colour (subject to deviations) RAL9010 Net weight product 4.01 kg
