CM6TSMF

6.5″ fireproof dual cone loudspeaker

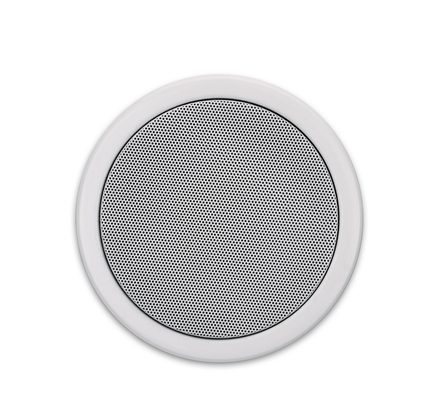

CM6TSMF is a 6.5” ceiling speaker with an all metal speaker grille, back-can and mounting dog-ears. This loudspeaker has been designed with safety in mind for 100 Volt applications which resulted in a modern and very competitively priced ceiling speaker with a safety metal dome. Easy to integrate in high quality background music and paging systems, the CM6TSMF offers a soundstage, unheard in this price range.

It is the ideal loudspeaker for background music and spoken message distribution. CM6TSMF has a very good speech intelligibility factor and a surprisingly wide dispersion at the typical speech frequencies, what makes it your number one choice for vocal announcements, evacuation systems…

Thanks to the back can of the loudspeaker, ideal and constant sound is guaranteed. In perforated ceilings, you will not have an acoustic short circuit when installing CM6TSMF as the back can of the loudspeaker prevents this to happen. Another advantage of the back can is that people working or living on the floor above will not hear the music that is playing.

Possible applications for CM6TSMF could be hallways, boutiques and shops, board rooms and offices, emergency and evacuation systems.







outside diameter205 mmdepth120 mm
cutout182 mminstallation grip range1 – 30 mm
loudspeaker systemdual conewoofer size6.5 inch
woofer cone materialcoated papermounting system3 screws
100V transformer power taps6 – 3 – 1.5 wattsSPL 1W/1m94 dB
max SPL 1m101 dBfrequency response90 – 19K Hz
main construction materialsteelgrille main materialsteel
IP rating60applicable low impedanceno
applicable in 100VyesHorizontal dispersion angle 1000 Hz180°
Vertical dispersion angle 1000 Hz180°closest RAL colour (subject to deviations)RAL9003
