CM8E

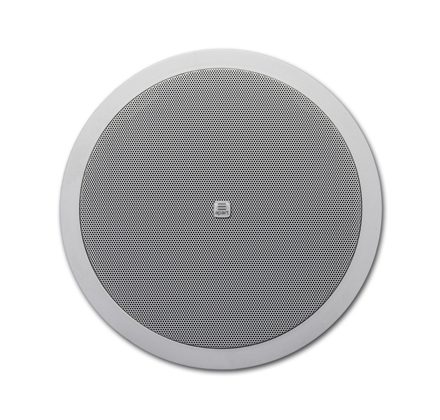

8″ two-way loudspeaker, white

The Apart CM8E is a 2-way 100 volt built-in ceiling loudspeaker. The loudspeaker has an 8” woofer, a 1”coaxial tweeter and a high quality 100 volt loudspeaker line transformer with multiple power taps. CM8E is the perfect choice for the distribution of microphone calls and background music. The mounting frame is made of high quality ABS. CM8E is available in white.
outside diameter244 mmdepth87 mm
cutout223 mmloudspeaker system2-way
woofer size8 inchwoofer cone materialpolypropylene
tweeter size1 inchmounting system3 screws
100V transformer power taps6 – 3 – 1.5 wattsimpedance16 ohms
low impedance dynamic power100 wattslow impedance RMS power50 watts
SPL 1W/1m88 dBmax SPL 1m96 dB
frequency response50 – 20K Hzmain construction materialABS plastic
grille main materialaluminiumIP rating54
applicable in 100VyesHorizontal dispersion angle 1000 Hz180°
Vertical dispersion angle 1000 Hz180°closest RAL colour (subject to deviations)RAL9010
