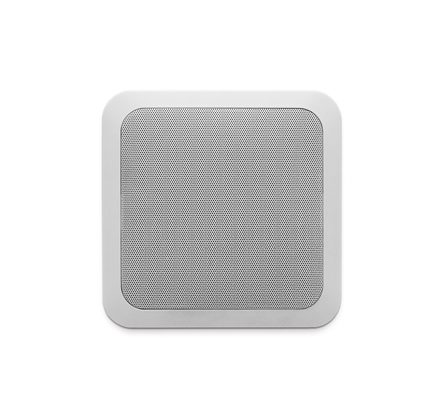

CMS20T

6.5″ two-way loudspeaker

The CMS20T is a 6.5″ two-way square built-in loudspeaker and is loved by contractors for its design and versatile characteristics. It can be used as a 16 ohms or 100 volt loudspeaker. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100 volt use, the CMS20T is equipped with a high-quality a 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts). The loudspeaker has a 6 ½” woofer and 1” tweeter. It makes the CMS20T very suitable for the distribution of microphone calls and background music.

The housing is made of high quality ABS. The woofer is made out of polypropylene, what makes it moisture-proof. The new enforced structure of the woofer cone, results in an even more clear sound. CMS20T is humidity proof what makes it suitable for bathrooms, kitchens…

The loudspeaker is easy to install, due to its simple, quick mounting system (4 screws which are hidden behind the loudspeaker grille, which gives the loudspeaker a modern and striking design).

From the CMS20T loudspeakers can be painted in any colour.







height 201 mm width 201 mm
depth 75 mm cutout 181 x 181 mm
installation grip range 1 – 16 mm loudspeaker system 2-way
woofer size 6.5 inch woofer cone material polypropylene
tweeter size 1 inch mounting system 4 screws
100V transformer power taps 20 – 10 – 5 – 2.5 watts impedance 16 ohms
low impedance dynamic power 60 watts low impedance RMS power 40 watts
SPL 1W/1m 89 dB max SPL 1m 104 dB
frequency response 60 – 20K Hz main construction material ABS plastic
grille main material aluminium IP rating 54
applicable low impedance yes applicable in 100V yes
Vertical dispersion angle 1000 Hz 180° closest RAL colour (subject to deviations) RAL9010
Net weight product 1.50 kg
