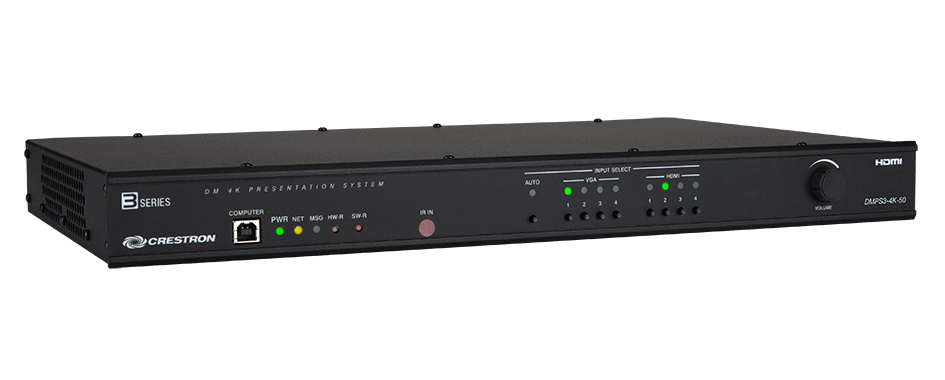

Procesor Sterujący Crestron  DMPS3-4K został stworzony do prezentacji w rozdzielczości ULTRA HD.

Nadaję się on idealnie do sal konferencyjnych oraz szkoleniowych. Ten zintegrowany procesor sprawda sie jako:

-System Kontroli

-Switch Multimedialny

-Skaler 4K

-DSP Audio

Można go zamontować  pod stołem konferencyjnym lub w szafie Rack.

Zintegrowany System Crestron Connect It™ umożliwia łatwą i bezproblemową konfigurację nie wymagającą programowania



Pamięć Systemowa

SDRAM 1 GB
Flash 4 GB
Komunikacja
Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet™/IP [8], IPv4 or IPv6, Active Directory authentication, IIS v.6.0 web server, SMTP e-mail client, RSTP, Private Network Mode
Cresnet® Cresnet master mode
USB USB host ports for Crestron Connect It devices and firmware update via USB flash drive; USB device port for computer console (setup)
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
IR/Serial 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud; built-in RC-5 compatible IR receiver
HDMI® HDCP, EDID, CEC
NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and the control system
Wideo
Switcher 8×1, auto-switching, auto-detecting multi-format digital/analog source inputs, QuickSwitch HD™ technology
Scaler 4K video scaler, motion-adaptive deinterlacer, intelligent frame rate conversion, Deep Color support, 3D to 2D conversion [6], content-adaptive noise reduction, widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1)
Input Signal Types HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort compatible [4]); RGB/VGA (RGBHV, RGBS, RGsB); component (YPbPr); S-Video (Y/C); composite (NTSC, PAL) [5]
Output Signal Types HDMI w/Deep Color, 3D, & 4K (DVI compatible [4])
Analog-To-Digital Conversion 10-bit 165 MHz per each of 3 channels
Maximum Pass-Through Resolutions
Input Type Scan Type Resolution Frame
Rate
Color
Sampling
Color
Depth
HDMI Progressive 4096×2160 4K DCI
or
3840×2160 Ultra HD
24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560×1600 WQXGA 60 Hz 4:4:4 36 bit
1920×1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920×1080 HD 1080i 30 Hz 4:4:4 36 bit
RGB/VGA Progressive 1600×1200 UXGA 60 Hz n/a
1920×1200 WUXGA 60 Hz n/a
Component [5] Progressive 1920×1080 HD 1080p 60 Hz n/a
Interlaced 1920×1080 HD 1080i 30 Hz n/a
Composite
or S-Video [5]
Interlaced 480i NTSC or 576i PAL 60 Hz n/a
Maximum Scaler Input Resolutions
Input Type Scan Type Resolution Frame
Rate
Color
Sampling
Color
Depth
HDMI Progressive 4096×2160 4K DCI
or
3840×2160 Ultra HD
24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
2560×1600 WQXGA 60 Hz 4:4:4 36 bit
1920×1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920×1080 HD 1080i 30 Hz 4:4:4 36 bit
RGB/VGA Progressive 1600×1200 UXGA 60 Hz n/a
1920×1200 WUXGA 60 Hz n/a
Component [5] Progressive 1920×1080 HD 1080p 60 Hz n/a
Interlaced 1920×1080 HD 1080i 30 Hz n/a
Composite
or S-Video [5]
Interlaced 480i NTSC or 576i PAL 60 Hz n/a
Maximum Scaler Output Resolutions
Input Type Scan Type Resolution Frame
Rate
Color
Sampling
Color
Depth
HDMI Progressive 4096×2160 4K DCI
or
3840×2160 Ultra HD
24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
2560×1600 WQXGA 60 Hz 4:4:4 36 bit
1920×1080 HD 1080p 60 Hz 4:4:4 36 bit
NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz for digital inputs and output, or 165 MHz for analog inputs
Audio – General
Switcher/Mixer 8×1 stereo source switcher, auto-detecting digital/analog source inputs, stereo DSP for analog output, 4×1 multichannel source switcher, digital audio mixer bypass mode for multichannel pass-through to digital output
Analog-To-Digital Conversion 24-bit 48 kHz
Digital-To-Analog Conversion 24-bit 48 kHz
Frequency Response 20 Hz to 20 kHz ±0.5 dB (digital source);
20 Hz to 20 kHz ±0.5 dB (analog line source);
20 Hz to 20 kHz ±0.7 dB (microphone source)
S/N Ratio >108 dB, 1 kHz, A-weighted (digital source);
>103 dB, 1 kHz, A-weighted (analog line source)
THD+N <0.002%, 20 Hz to 20 kHz (digital source);
<0.005%, 20 Hz to 20 kHz (analog line source);
<0.05%, 20 Hz to 20 kHz (microphone source)
Stereo Separation >108 dB (digital source);
>103 dB (analog source)
Audio – Source Inputs
Typical of 8 source input channels (Audio Inputs 1 – 4, HDMI Inputs 1 – 4)
Input Signal Types Analog 2-channel, HDMI (Dual-Mode DisplayPort compatible [4])
Analog Formats Stereo 2-channel
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels [7]
Input Compensation ±10.0 dB [7]
Audio – Analog Line Output
Output Signal Type/Format Stereo 2-channel
Source -80 to +10 dB Level adjustment range, plus Mute and Balance
Master Volume -80 to +10 dB Level adjustment range, plus Mute and Mono
Bass ±12.0 dB
Treble ±12.0 dB
Equalization 10-band graphic
GEQ Center Frequencies 31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz
GEQ Gain ±12.0 dB per band
Delay 0.0 to 80.0 ms
Limiter Threshold -80 to 0 dBz
Limiter Ratio 1:1 to 10:1
Limiter Attack 1 to 250 ms
Limiter Release 1 to 1000 ms
Limiter Curve Hard or soft knee
Audio – Digital Output
Output Signal Types HDMI, DM 8G+ & HDBaseT
Formats Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels [7]
Source -80 to +10 dB Level adjustment range, plus Mute and Balance [7]
Master Volume -80 to +10 dB Level adjustment range, plus Mute [7]
Connectors – Audio/Video Inputs
VGA IN 1 – 4 (4) HD15 female, analog VGA/RGB/video inputs;
Signal Types: VGA, RGB, component, S-Video, or composite [5];
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC or PAL;
Input Level: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms nominal;
Sync Detection: RGBHV, RGBS, RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 2.2k Ohms
AUDIO IN 1 – 4 (4) 3.5 mm TRS mini phone jacks;
Unbalanced stereo line-level analog audio inputs;
Input Impedance: 32k Ohms unbalanced;
Maximum Input Level: 2.8 Vrms unbalanced;
Note: If an HDMI input is selected but no digital audio signal is detected, the corresponding analog audio input is activated (AUDIO 1 for HDMI 1, etc.)
HDMI IN 1 – 4 (4) 19-pin Type A HDMI female;
Digital video/audio inputs;
Signal Types: HDMI, DVI, or Dual-Mode DisplayPort [4]
Connectors – Audio/Video Outputs
HDMI OUT (1) 19-pin Type A HDMI female;
Digital video/audio output;
Signal Types: HDMI, DVI [4]
AUDIO OUT (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced
Connectors – Control & Power
IR OUT (1) 3.5 mm mini-phone jack;
IR/Serial output port;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
LAN (1) 8-pin RJ45 female;
10Base-T/100Base-TX Ethernet port
USB 1 – 4 (4) USB Type A female;
USB 2.0 host ports for TT-100 series Crestron Connect It Cable Caddies[1];
Also enables firmware update via USB flash drive
G (1) 6-32 screw, chassis ground lug
NET (1) 4-pin 3.5 mm detachable terminal block;
Cresnet Master port;
Available Cresnet Power: 24 Watts
100-240V~1.4A 50/60Hz (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
COMPUTER (front) (1) USB Type B female;
USB computer console port;
For setup only
IR IN (front) (1) Infrared sensor;
IR Frequency: 36 to 38 kHz;
IR Formats: Crestron format, RC5;
Allows control from IR wireless remotes using the Crestron or RC-5 command sets
Controls & Indicators
PWR (1) Bi-color green/amber LED, indicates operating power supplied from AC line power, turns amber while booting and green when operating
NET (1) Yellow LED, indicates Cresnet bus activity
MSG (1) Red LED, indicates internal control system has generated an error message
HW-R (1) Recessed pushbutton for hardware reset, reboots the control system
SW-R (1) Recessed pushbutton for software reset, restarts the software program
AUTO INPUT SELECT (1) Pushbutton and bicolor green/amber LED, selects auto-switching mode
VGA INPUT SELECT 1 – 4 (4) Pushbuttons for manual input selection, and (4) bicolor green/amber LEDs to indicate the current active input and signal presence at each corresponding VGA input
HDMI INPUT SELECT 1 – 4 (4) Pushbuttons for manual input selection, and (4) bicolor green/amber LEDs to indicate the current active input and signal presence at each corresponding HDMI input
VOLUME (1) Continuous turn rotary encoder, adjusts the analog audio output volume
LAN (rear) (2) LEDs, bi-color LED (left) indicates Ethernet speed and activity, green LED (right) indicates Ethernet link status
Power Requirements
Main Power 1.4 Amps @ 100-240 Volts AC, 50/60 Hz
Power Consumption 33 Watts typical, 26 Watts idle
Available Cresnet Power 24 Watts
Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 112 BTU/hr typical, 88 BTU/hr idle
Enclosure
Chassis Metal, black finish, fan-cooled, vented sides
Front Panel Metal, black finish with polycarbonate label overlay
Mounting Freestanding, 1 RU 19-inch rackmount, or under-table mount (adhesive feet, rack ears, and under-table mounting brackets included)
Dimensions
Height 1.74 in (45 mm) without feet
Width 17.28 in (439 mm);
18.94 in (482 mm) with rack ears
Depth 10.47 in (266 mm)
Weight
6.4 lb (2.9 kg)

Strona Producenta

www.crestron.eu
