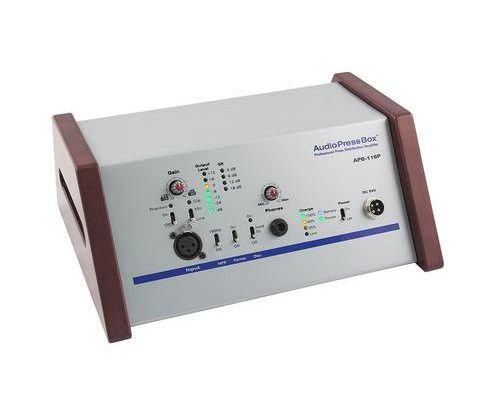

Skrzynka Dziennikarska AudioPressBox APB-116 P



Active, portable, 1x MIC/LINE Input,
16 LINE/MIC Outputs, internal AccuPack 10 hours

A professional  portable active press box  (Audio Splitter) suitable for both  indoor and  outdoor  press conferences.
It features 1  MIC/Line Input  and 16  Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The APB-116 P also includes a  rechargable AccuPack  so it can run on its own  up to 10 hours.
The wooden sides give it a premium look so it is a nice addition to any conference room.





  • 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD
  • 16 High quality internal balanced Outputs, independent transformer isolated
  • Each Output is switchable between MIC or LINE level
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit







udio Press Box APB-116P
Type 1 in16 out – portable
Groups 1
Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Limiter ON
Mic: -10/-30dBu
Line: +36/-4dBu
Limiter OFF
Mic: -2/-42dBu
Line: +24/-16dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Output section
Outputs 16 Line/MIC leve
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 30/160Hz (filter) to 30kHz/-1dB
Controls Mic/Line PAD, Input gain, Phantom, High-pass filter, Compressor, Oscillator, Phones level, Power, Output PAD
Indicators Input clip, Phantom power, Output level, Gain reduction, Power, Battery status (with battery option)
Power Supply 24V DC, 300mA external adaptor
Battery Li-Ion, 14,4V 2200mAh
Battery Operation Time min. 12hrs
Dimensions (WxHxD) 280x120x230mm
Weight 3,5 kg
