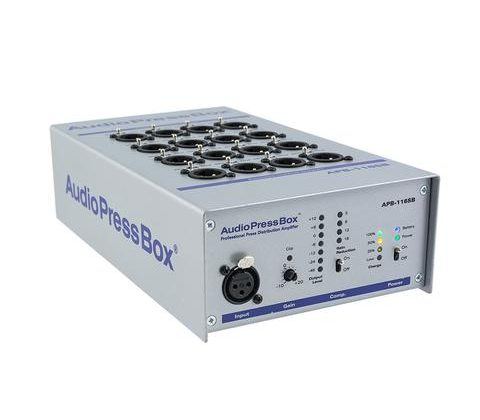

Skrzynka Dziennikarska AudioPressBox APB-116 SB

A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 1 Line Input and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The APB-116 SB also includes a rechargable AccuPack so it can run on its own up to 10 hours.





  • 1x LINE Input – balanced with ajustable gain -10db to +20 dB
  • 16 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Built in High-Pass filter on the frequency of 40Hz
  • Switchable Compressor and Limiter for Input channel
  • Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit





Audio Press Box APB-116 SB
Type1 IN/ 16
Groups1
Input section
Inputs1
Input connectorsBalanced, XLR
Max. input levelLine: +32/+2dBu
Input Impedance>5kOhm
Output section
Outputs16 Line/MIC level
Output connectorsBalanced, XLR
Nominal Output Level –-6/0/+4/+6 dBu
Max. Output Level+20dBu (no load) +16dBu (600kOhm)
Output impedanceMic: 220 OhmLine: 600 Ohm
Transformer isolated outputsYes (each output is Independant Transformer Isolated)
SNR86dB at 0dB Gain 78dB at +20dB Gain
Frequency Response30/160Hz (filter) to 60kHz/-1dB
ControlsInput gain, Compressor,Power, Output PAD
IndicatorsInput clip, Output level, Gain reduction, Power, Battery status
Power Supply24V DC, 300mA external adaptor
BatteryLi-Ion, 7.2V 2200mAh (optional) , operation time 10 hours
Dimensions (WxHxD)150x70x300mm
Weight3,2 kg
