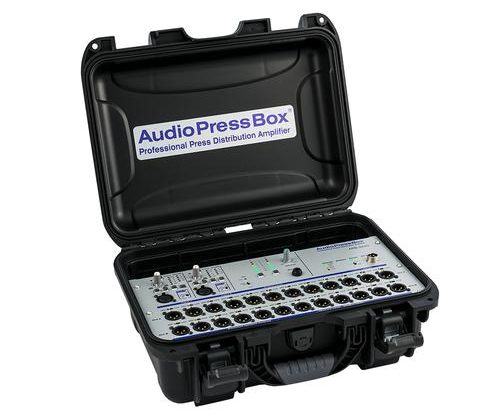

Skrzynka Dziennikarska AudioPressBox APB-224 C



A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 2 MIC/Line Inputs (A,A+B,B) and 24 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
What is more, it can also be used for bilingual conferences as it features 2 separate channels A and B.
Each input can be routed to channel A or channel B or both at the same time.
There is a bus A with 12 Line/MIC outputs and bus B with 12 Line/MIC outputs.
The APB-224 C also includes a rechargable AccuPack so it can run on its own up to 10 hours.
All of this placed in a waterproof, heavy duty Nanuk case.





  • 2 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD
  • Each Input is routable to A/(A+B)/B Outputs Group
  • 24 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • 2 internal Output Groups: 12x Output A and 12x Output B
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • PFL/AFL for each Input/Output channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output for PFL/AFL
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit







Audio Press Box APB-224C
Type 2 in 24 out
Groups 2
Input section
Inputs 2
Input connectors Balanced, XLR
Input Gain MIC +22/+62 dB LINE -4/+36 dB
Max. input level Limiter ON
Mic: -10/-30dBu
Line: +36/-4dBu
Limiter OFF
Mic: -2/-42dBu
Line: +24/-16dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Output section
Outputs 24 Line/MIC level (12x Output A, 12x Output B),
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 30/160Hz (filter) to 30kHz/-1dB
Controls Input section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch Output section: Oscillator, Output level for bus A and bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
Indicators Input section: Input clip, Phantom power, Input level, Gain reduction, PFL Output section: Output level for Bus A and Bus B, Oscilator, Power,Battery status
Power Supply 24V DC, 300mA external adaptor
Battery Li-Ion, 14,4 V 2200mAh
Battery opeation time min.8 hrs
Weight 7 kg
