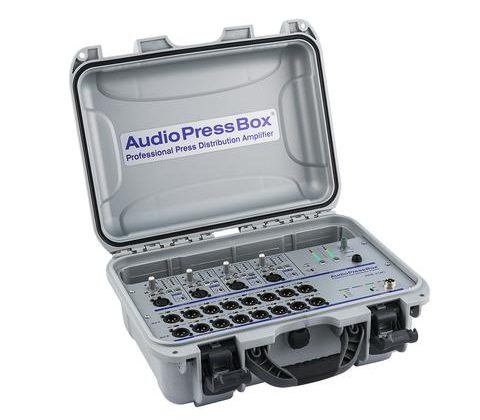

Skrzynka Dziennikarska AudioPressBox APB-416 C



A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 4 MIC/Line Inputs (A,A+B,B) and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
What is more, it can also be used for bilingual conferences as it features 2 separate channels A and B.
Each input can be routed to channel A or channel B or both at the same time.
There is a bus A with 8 Line/MIC outputs and bus B with 8 Line/MIC outputs.
The APB-416 C also includes a rechargable AccuPack so it can run on its own up to 10 hours.
All of this placed in a waterproof, heavy duty Nanuk case.





  • 4 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD
  • Each Input is routable to A/(A+B)/B Outputs Group
  • 16 High quality independent transformer balanced and isolated outputs
  • Each Outputs is switchable between MIC or LINE level
  • 2 internal Output Groups: 8x Output A and 8x Output B
  • Switchable High-Pass filter for each Input channels
  • Switchable Compressor and Limiter for each Input channel
  • PFL/AFL for each Input/Output channels
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output for PFL/AFL
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit







Audio Press Box APB-416C
Type4 in 16 out
Groups2
Input section
Inputs4
Input connectorsBalanced, XLR
Input GainMIC +22/+62 dBLINE -4/+36 dB
Max. input levelLimiter ON
Mic: -10/-30dBu
Line: +36/-4dBu
Limiter OFF
Mic: -2/-42dBu
Line: +24/-16dBu
Phantom Voltage48V
Input ImpedanceMic: 2,4 kOhmLine: 3,5 kOhm
Output section
Outputs16 Line/MIC level (8x Output A, 8x Output B)
Output connectorsBalanced, XLR
Nominal Output Level+6dBu
Maximum Output Level+20dBu (no load)
+14dBu (600kOhm)
Output impedanceMic: 220 OhmLine: 600 Ohm
Transformer isolated outputsYes (each output)
SNR86dB
Frequency Response30/160Hz (filter) to 30kHz/-1dB
ControlsInput section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switchOutput section: Oscillator, Output level for Bus A and Bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
IndicatorsInput section: Input clip, Phantom power, Input level, Gain reduction, PFLOutput section: Output level for Bus A and Bus B, Oscilator, Power,Battery status
Power Supply24V DC, 300mA external adaptor
BatteryLi-Ion, 14,4 V 2200mAh
Battery opeation timemin.8 hrs
Weight7 kg
