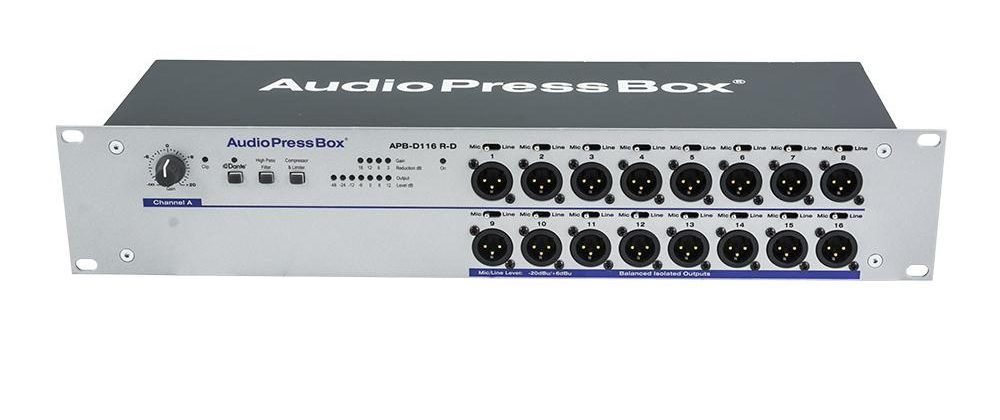

Skrzynka Dziennikarska AudioPressBox APB-D116 R-D



Active 19″ rack, AudioPressBox Drive Unit, 1 LINE Input, 1-channel Dante Interface, 16 Line/MIC Outputs, 1 buffered Output for up to 3 AudioPressBox expanders

1-channel active drive unit features 1 Analogue and DANTE input with high-quality digital-to-analogue converter. You can switch between Line or Dante input, depending on your needs.

It offers 16 Line/MIC Level Outputs on the front and one output for expanders on the rear.

Front outputs are balanced and individually transformer isolated with selectable output level for each output.

You can expand the number of outputs with AudioPressBox expanders with up to 24 additional Line/MIC outputs per channel.

As is AudioPressBox standard, you can use our signal processing like high-pass filter and compressor with limiter to achieve the perfect audio signal for all connected journalists.

APB-Dante products uses Power over Ethernet (PoE). Power can be provided through the Ethernet cable from a PoE-capable network switch, or from a separate PoE injector.





  • 1 Balanced LINE Input – XLR / 6.3mm JACK
  • 1-channel DANTE input with high-quality digital-to-analogue converter
  • You can switch between Line or Dante input, depending on your needs.
  • 16 High quality balanced, individually transformer isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • 1 separately buffered Output that can drive 3x APB-008 or 1x APB-024 Output expanders
  • Maximum drive capacity is 24 Line/MIC Outputs.
  • Total maximum of 16+24 Line/MIC Outputs.







Audio Press Box APB-D116 R-D
Type1 in 16 out
Groups1
Input section
Inputs1
Input connectorsBalanced, XLR / 6.3 mm JACK, RJ45-Dante
Max. input levelLine: +32/+2 dBu
Phantom Voltage48V
Input Impedance>5kOhm
Output section
Outputs16 Line/MIC level, 1 buffered output for expanders (max 24 Line/MIC outputs)
Output connectorsBalanced, XLR
Nominal Output Level+6dBu (front outputs)
Maximum Output Level+20dBu (no load)
+14dBu (600Ohm)
Output impedanceMic: 220 OhmLine: 600 Ohm
Transformer isolated outputsYes (each output)
SNR86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response20/160Hz (filter) to 36kHz/-3dB (front outputs)
ControlsInput gain, Dante switch, High-pass filter, Compressor, Output PAD
IndicatorsInput clip, Dante, Output level, Gain reduction, Power
Power Supply24V DC, 1A external adaptor
Dimensions (WxHxD)2 RU, 480x88x130mm
Weight3,3 kg
