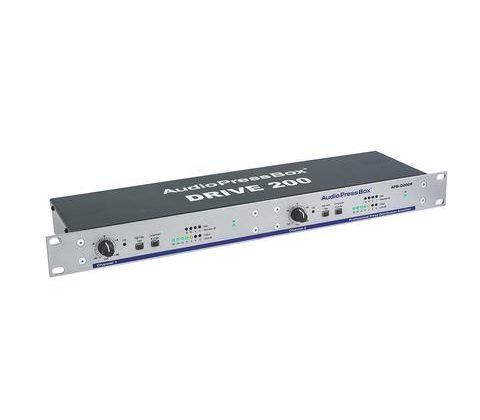

Skrzynka Dziennikarska AudioPressBox APB-D200 R



  • Professional active 19” rack AudioPressBox Drive unit
  • Channels (2x balanced LINE Input)
  • Switchable High-Pass filter for for each Input channel
  • Switchable Compressor and Limiter for for each Input channel
  • 4 separately buffered Outputs (2 for each channel) that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 96 Line or Mic Outputs.





Audio Press Box APB-D200 R
Type 2 IN/ 4 Drive OUT for 12xAPB 8-Output expanders or 4xAPB 24- Output expander
Note: Total capacity:96 Line/Mic outputs (12x APB-008 xx-EX or 4x APB-024 R-EX)
Input section
Inputs 2
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 4 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors Balanced, XLR
Nominal Output Level +6 dBu
Maximum Output Leve +20dBu with 48 Outputs in use
+16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each EXPANDER output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators Input clip, Output level, Gain reduction, Power
Power Supply 24V DC, 300mA external adaptor
