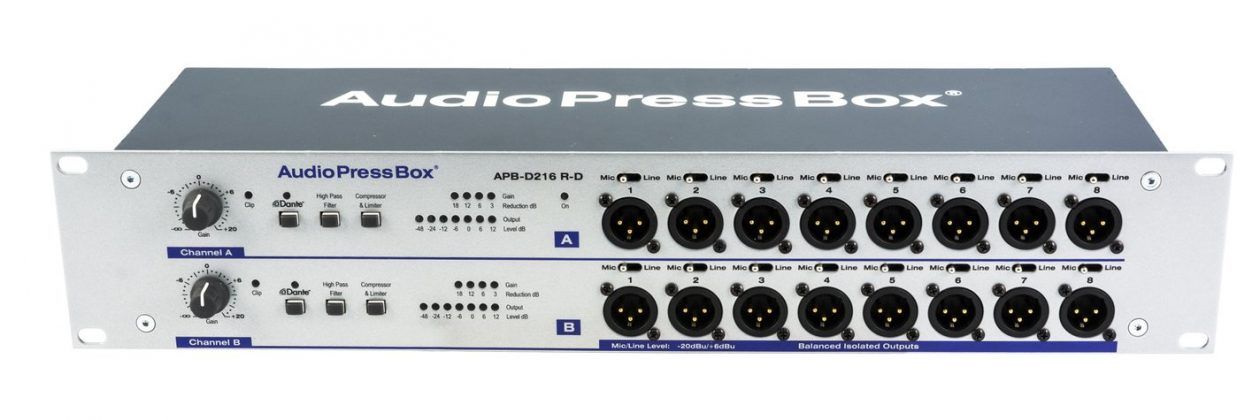

Skrzynka Dziennikarska AudioPressBox APB-D216 R-D



Active 19″ rack, AudioPressBox Drive Unit, 2 LINE Inputs, 2-channel Dante Interface, 16 Line/MIC Outputs, 2 buffered Outputs for up to 6 AudioPressBox expanders

2-channel active drive unit features 2 Analogue DANTE inputs with high-quality digital-to-analogue converter. You can switch between Line or Dante input, depending on your needs.

It offers 16 Line/MIC Level Outputs on the front and one output for expanders on the rear.

Front outputs are balanced and individually transformer isolated with selectable output level for each output.

You can expand the number of outputs with AudioPressBox expanders with up to 48 additional Line/MIC outputs per channel.

As is AudioPressBox standard, you can use our signal processing like high-pass filter and compressor with limiter to achieve the perfect audio signal for all connected journalists.

APB-Dante products uses Power over Ethernet (PoE). Power can be provided through the Ethernet cable from a PoE-capable network switch, or from a separate PoE injector.

PoE Power Consumption: < 2 Watt





  • 2 Balanced LINE Inputs – XLR / 6.3mm JACK
  • 2-channel DANTE input with high-quality digital-to-analogue converter
  • You can switch between Line or Dante input, depending on your needs.
  • 16 High quality balanced, individually transformer isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders
  • Maximum drive capacity is 48 Line/MIC Outputs.
  • Total maximum of 16+48 Line/MIC Outputs.







Audio Press Box APB-D216 R-D
Type 2 in 16 out
Groups 2
Input section
Inputs 2 (Line or Dante)
Input connectors Balanced, XLR / 6.3mm JACK, RJ45-Dante
Max. input level Line: +32/+2 dBu
Input Impedance >5kOhm
Output section
Outputs 16 Line/MIC level, 2 buffered outputs for expanders (max 48 Line/MIC outputs)
Output connectors Balanced, XLR
Nominal Output Level +6dBu (front outputs)
Maximum Output Level +20dBu (no load)
+14dBu (600Ohm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 20/160Hz (filter) to 36kHz/-3dB (front outputs)
Controls Input gain, Dante switch, High-pass filter, Compressor, Output PAD
Indicators Input clip, Dante, Output level, Gain reduction, Power
Power Supply 24V DC, 1A external adaptor
Dimensions (WxHxD) 2 RU, 480x88x130mm
Weight 3,5 kg
