Skrzynka Dziennikarska AudioPressBox APB-P008 IW-EX



  • 8 High quality balanced Outputs, each Output is independent transformer isolated

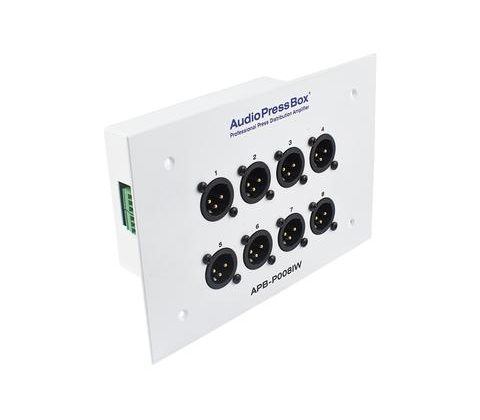

Audio Press Box APB-P008
TypeExpander
Groups1
Inputs1
Input connectorsballanced, 3-pin phoenix connector
Max. input levelLine: +24dBu
Input Impedance2,5kOhm
Ouputs8 MIC level (-38dBu) 1 Input link (Line level)
Ouput connectorsballanced, XLR-M connector
Transfomer isolated outputsYes (each output)
Nominal Output level-38dBu (0dBu on the input)
Maximum Output level-14dBu (no load) -20dBu (150 Ohm)
Output Impedance150 Ohm
Frequency Response10Hz to 30kHz/-1dB
