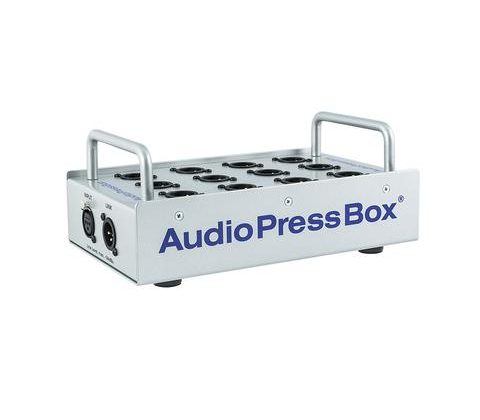

Skrzynka Dziennikarska AudioPressBox APB-P112 SB



A professional portable passive press box (Audio Splitter) suitable for both indoorand outdoor press conferences.
It features 1 Line Input and 12 MIC outputs.
Each Output is independet transformer balanced and isolated.
It also has a link Output so you can daisy chain more of them in a row if you need additional MIC Outputs.



  • 1 balanced LINE Input
  • 12 High quality balanced Outputs, each Output is independent transformer isolated





Audio Press Box APB-P112 SB
Type 1 in 12 out
Groups 1
Inputs 1
Input connectors ballanced, XLR
Max. input level Line: +24dBu
Input Impedance 2,5kOhm
Ouputs 12 MIC level (-38dBu) 1 Input link (Line level)
Ouput connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level -38dBu (0dBu on the input)
Maximum Output level -14dBu (no load) -20dBu (150 Ohm)
Output Impedance 150 Ohm
Frequency Response 10Hz to 30kHz/-1dB
Dimensions (WxHxD) 134x88x224 mm
