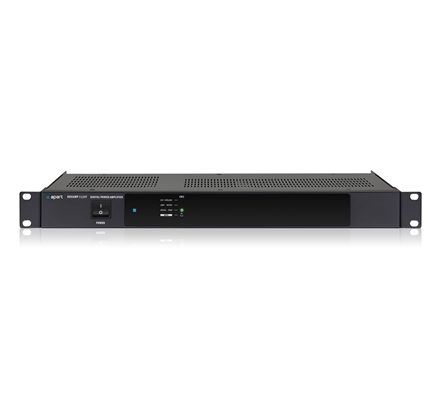

Our newest single channel professional power amplifier the REVAMP1120T is a unique and versatile Apart design with 1 x 120 watts output power @ 100 volts (or @ 4 ohms). The REVAMP1120T is a class-D amplifier with a builtin galvanic separated toroidal output transformer free of external influences and disturbances. Convection-cooled and excluded from cooling fans this amplifier is reliable, maintenance-free, silent and dust-free. The rear clip LED indication on the input gain together with the ease of installation via multiple input and link connection options make the REVAMP1120T the preferred installer’s choice. Completely built in a 1U chassis without front control the REVAMP1120T is bound to become a reference in the small and mid-sized fixed install audio market.




dynamic output power 4 ohms 120 watts RMS output power 4 ohms 120 watts
dynamic output power 8 ohms 60 watts RMS output power 8 ohms 60 watts
output power RMS 100 volts 120 watts minimum impedance load per channel 4 ohms
power consumption (max) 200 watts 19″ (483 mm wide) rack mounting yes
height- rack units (1U=44 mm) 1 U height 44 mm
depth (build in) 230 mm depth (incl front) 239 mm
power supply 115 – 230 VAC power supply technology switching mode power supply
output voltage tappings 100 – 70 – 50 – 35 volts – 4 ohms output channels 1
line input balanced 1 line input unbalanced 1
channel separation > 65 dB @ 1 kHz power amp topology class-D
frequency response (in Hz) 50 – 20 k cooling system convectional
applicable in 100V yes applicable low impedance yes
Net weight product (kg) 4.6
