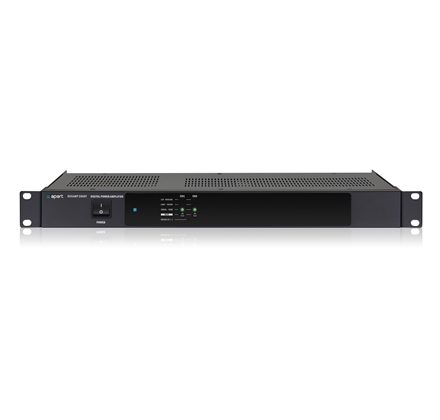

The new versatile REVAMP2060T is a professional 2-channel digital power amplifier with 2 x 60 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 120 watts @ 100 volts or 8 ohms single amplifier. This Class-D amplifier has a galvanic separated toroidal output transformer built in to avert external influences & disturbances. A fast installation tool on the rear is the clip LED indicator that can be used during the configuration of the input gain. The convection cooled REVAMP2060T has no fan inside which implies that the amplifier works silent and stays dust-free at all times. This maintenance-free feature together with the ease of installation via multiple input and link connection options makes the REVAMP2060T the preferred installer’s choice. The slim 1U design without front control makes the REVAMP2060T a unique all-round amplifier unlike any other in the market.



dynamic output power 4 ohms 2 x 60 watts RMS output power 4 ohms 2 x 60 watts
dynamic output power 8 ohms 2 x 30 watts RMS output power 8 ohms 2 x 30 watts
dynamic output power bridged 8 ohms 120 watts output power RMS bridged 8 ohms 120 watts
output power RMS 100 volts 2 x 60 watts output power RMS bridged 100 volts 120 watts
minimum impedance load per channel 4 ohms minimum impedance load bridged per channel 8 ohms
power consumption (max) 175 watts 19″ (483 mm wide) rack mounting yes
height- rack units (1U=44 mm) 1 U depth (build in) 230 mm
depth (incl front) 239 mm power supply 115 – 230 VAC
power supply technology switching mode power supply output voltage tappings 100 – 70 – 50 – 35 volts – 4 ohms
output channels 2 line input balanced 2
line input unbalanced 2 channel separation > 65 db @ 1kHz
power amp topology class-D frequency response (in Hz) 50 – 20 k
cooling system convectional applicable in 100V yes
applicable low impedance yes Net weight product (kg) 5.7
