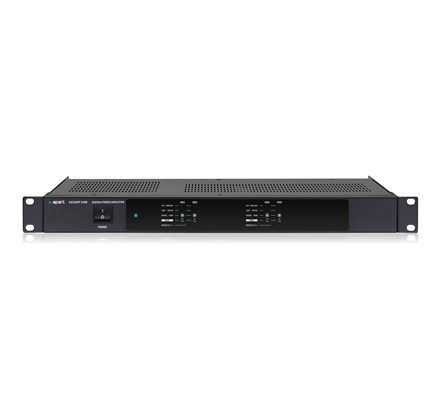

REVAMP4100 is a professional digital 4-channel amplifier with high power Class-D power amplifier modules inside. The unit has extended speaker and amp protection circuits inside for DC protect, over current protect, over temperature protect and protection against input overload.

The REVAMP4100 amplifier has 4 individual amplifier channels but can be bridged into 2 stereo channels.



dynamic output power 4 ohms 4 x 110 watts RMS output power 4 ohms 4 x 100 watts
dynamic output power 8 ohms 4 x 55 watts RMS output power 8 ohms 4 x 50 watts
dynamic output power bridged 8 ohms 2 x 225 watts output power RMS bridged 8 ohms 2 x 200 watts
minimum impedance load per channel 4 ohms minimum impedance load bridged per channel 8 ohms
power consumption (max) 500 watts 19″ (483 mm wide) rack mounting yes
height- rack units (1U=44 mm) 1 U height 44 mm
depth (build in) 230 mm depth (incl front) 239 mm
power supply 100 – 254 VAC power supply technology switching mode power supply
output channels 4 line input balanced 4
line input unbalanced 4 channel separation > 65 dB @ 1 kHz
power amp topology class-D frequency response (in Hz) 20 – 22 k
cooling system convection applicable in 100V no
applicable low impedance yes Net weight product (kg) 3.5
